© 2024 huntinglights.com.au. All Rights Reserved.Lightforce Dual USB Outlet In-dash (Hilux/Landcruiser/Prado)
Special Price
$27.16
Regular Price
$28.00
In stock
SKU
CBUSBTY2
Lightforce Dual USB Outlet In-dash (Hilux/Landcruiser/Prado) is available to buy in increments of 1

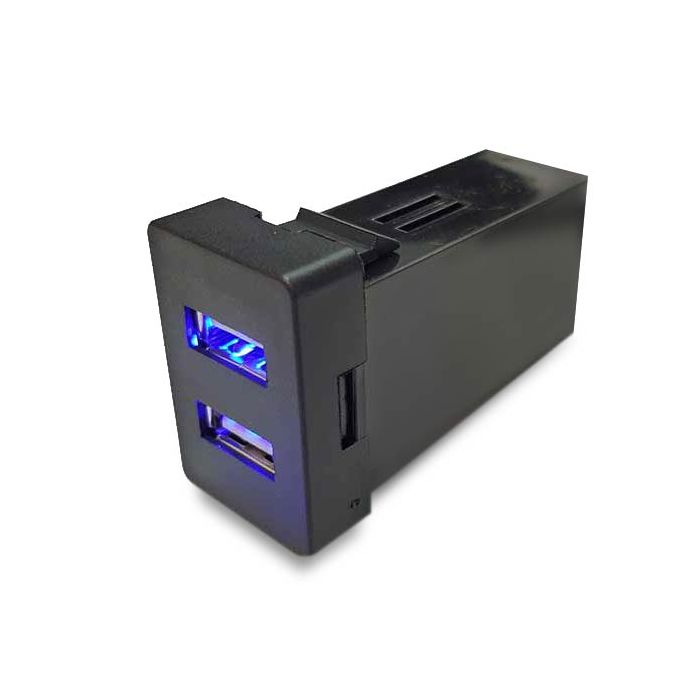

Lightforce Dual USB Outlet In-dash (Hilux/Landcruiser/Prado)
Lightforce Dual USB Outlet In-dash (Hilux/Landcruiser/Prado)
KIT INCLUSIONS
- 1 x USB Outlet
- 1 x Short harness and adaptor
- 1 x Instructions
This Dual 2.1 amp USB charger is designed to suit Toyota vehicles with a 32mm x 20mm switch panel.
Suitable for charging high powered devices like tablets, mobile phones and gaming consoles or powering navigation units and in car DVR's.
FEATURES
- Dual 2.1 amp (4.2A in total) outputs that are fully regulated and surge protected.
- Independent illumination that is fully dimmable via existing dash light circuit, separate from the main input power, so illumination is not always on; a unique feature of our product.
- All cables are over 1.5 metres long, USB power input (red wire) in is fitted with a fuse tap for direct fitment to the fuse box. Earth cable (black wire) is pre-terminated with a ring terminal and independent LED illumination (blue wire) for connection to existing dash light circuit.
SPECIFICATIONS
- USB Charger Dual Outlet
- Dual 2.1A (4.2A) outlets
- 5.1 Volts regulated output
- 1.5 Metre long cables
- 5 Amp fuse tap for dual USB outlets
- 2 Amp fuse for illumination
- Independent blue LED illumination
- Matte black face
Compatible vehicles:
- 4Runner 2010 - Current
- 200 Series Landcruiser 2008 - Current
- FJ Cruiser 2011 - 2013 (Roof Console only)
- Hilux 2015 - Current
- Kluger/Highlander 2008 - Current
- Prado 150 2010 - Current
- RAV4 2006 - 2012
- Toyota 86
- Tundra 2008 - Current
May also be compatible with Toyota models including Camry, Corolla and Yaris models, confirm size is 32mm x 20mm before purchasing.
Installation:
- Red wire – USB positive wire can be connected in the following ways.
- To an ignition source so the unit is only powered once the vehicle is on; or to an always on source so the unit is active continuously.
- Blue wire - Positive wire connects to the existing dash light circuit so LED illumination is only active once headlights are on.
- Black wire - Fit to vehicles earth simply connect ring terminal to an existing M6 bolt that is grounded.
NOTE: All vehicle accessories should be wired through a fuse if the included harness is modified during installation ensure a fuse is used as close to the input source as possible, not exceeding 5 amps.
Manufacturer | Lightforce |
---|
